A330-243F

Thumbnail
Thumbnail
Thumbnail
BG
BG
BG

General


Aircraft Type:

Widebody Freighter

Manufacturer:

Airbus

Model:

A330-243F


Capacity & Payload


Maximum Payload:

UP TO 70 tons (154,000 lb)

Max usable volume main deck

215.68 m³ (22PMC)

Max usable volume aft cargo hold

45.80m³ (4PCM)

Max usable volume fwd cargo hold

57.25m³ (4PMC+1PLA)

Max usable volume

51+53 13.9m³ (bulk compartment)


Dimensions


Overall Length:

58.82 m (193 ft 0 in)

Wingspan:

60.30 m (197 ft 10 in)

Height:

17.39 m (57 ft 1 in)

Fuselage Width:

5.64 m (18 ft 6 in)


Performance


Maximum Takeoff Weight (MTOW)

223.000 kg

Cruise Speed:

Mach 0.86

Maximum Cruise Altitude

41,000 ft


Engines


Engine Options:

Rolls-Royce Trent 700

Number of Engines

2


Flight Deck & Crew


Crew:

2 pilots


Key Advantages

  • High payload-to-range efficiency

  • Optimized nose-gear design for level cargo deck

  • Lower operating costs compared to older freighters

  • Temperature controlled main deck cargo hold between 5 and 25 degrees Celsius.

Typical Use Cases

  • Express freight & e-commerce

  • Palletized and containerized cargo

  • Charter and ACMI operations

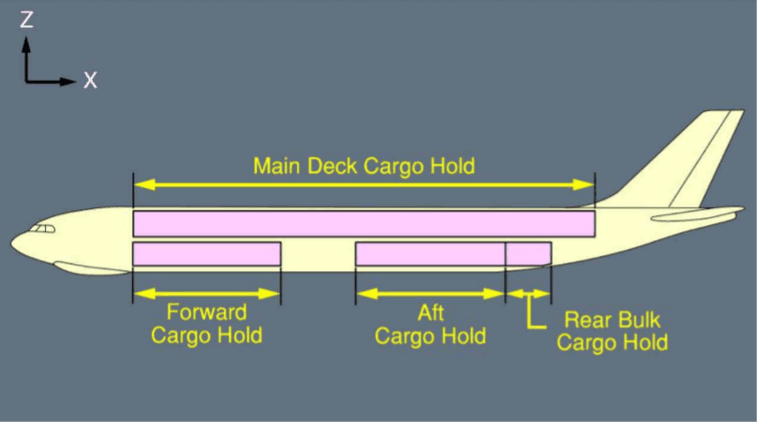

Cargo System

Versatile main deck configuration allowing volume maximalization or transportation of oversized shipments. Lower holds available both for palettised and containerised shipments while bulk hold is available for loose cargo.

Cargo holds:

Cargo holds:

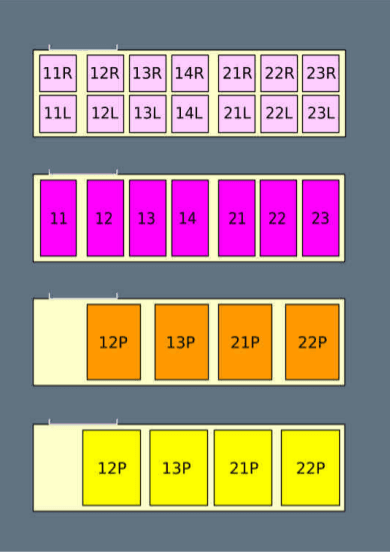

Forward lower deck layouts:


1st row: K size containers
2nd row: L size pallets
3rd row: A size pallets
4th row: M size pallets

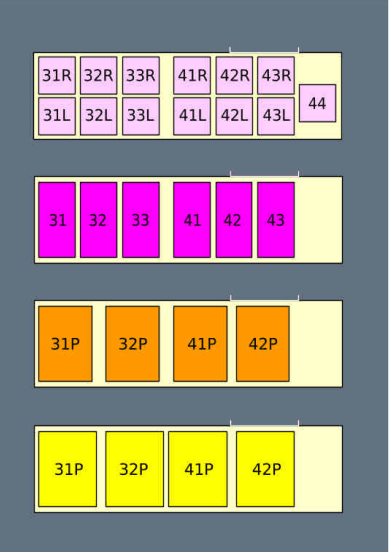

Aft lower deck layouts:


1st row: K size containers
2nd row: L size pallets
3rd row: A size pallets
4th row: M size pallets

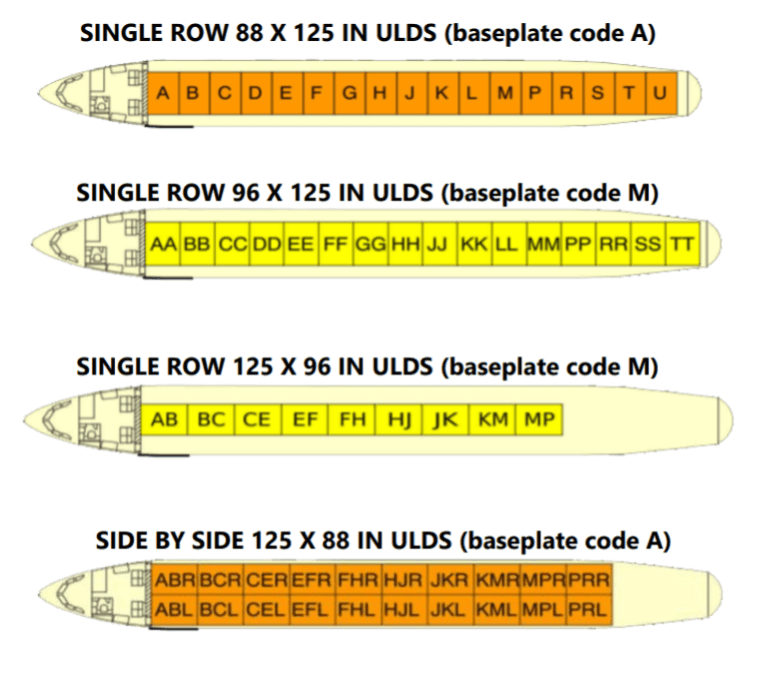

Main deck cargo hold layouts:
